SCAG WINDSTORM

WINDSTORM

A PERFECT STORM

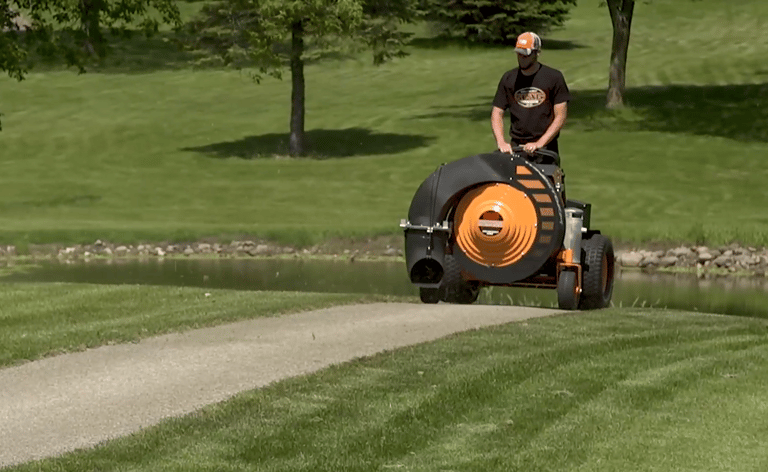

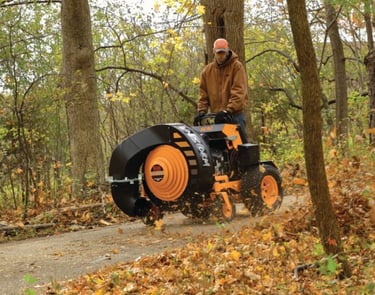

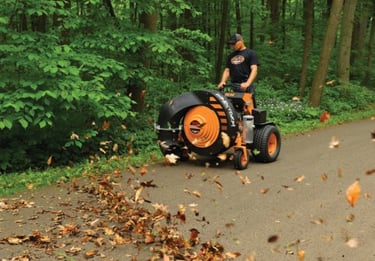

A storm is on the horizon, and it’s about to blow tough jobs away. Powered by a 37 hp, fuel-injected Briggs Vanguard® BIG BLOCK™ engine, the Windstorm® delivers incredible ground-clearing force. A compact, stand-on design makes maneuvering in tight spaces a cinch while its multi-directional air output aims airflow exactly where it’s needed.

STARTING AT $14,349

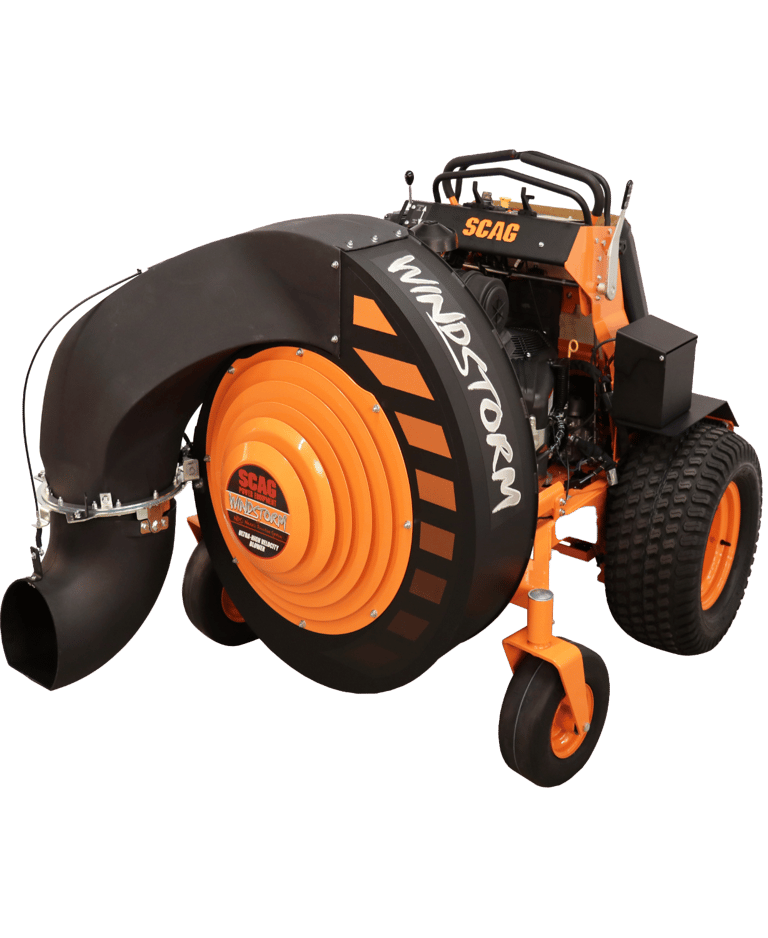

SCAG WINDSTORM

WINDSTORM

MODEL: WS23-37BV-EFI

TOTAL FUEL CAPACITY: 8 GALLONS
ENGINE: Briggs Vanguard™ BIG BLOCK™
HORSEPOWER: 37
CMF OUTPUT: 6,000 THEORETICAL PEAK CMF 7,500
CLUTCH: OGURA GT3.5 (250 FT LB.) W/ SOFTSTART ELECTRIC CLUTCH CONTROL
FRAME CONSTRUCT: ALL STEEL WELDED 10-GAUGE
IMPELLER CONSTRUCTION: ALL STEEL, WELDED, 8-BLADE, DYNAMICALLY BALANCED
IMPELLER MOUNTING: TAPERED LOCKING HUB
IMPELLER DIAMETER: WIDTH 23" / 8.5"
BLOWER HOUSING CONSTRUCTION: ALL STEEL WELDED 12-GAUGE FRONT AND SIDE HOUSING PLATE AND 10-GAUGE BACK HOUSING PLATE
NOZZLE DIRECTING SYSTEM: OFFERS UP TO 180 DEGREES OF ROTATION
ANGLE CONTROL: YES
WEIGHT: 943 LBS.
MSRP: $14,349
WARRANTY: 2-Year Commercial; 2-Year Residential; 90-day Rental
Specifications and prices subject to change without notice. Actual ground speeds may vary. Accessories subject to availability.
Because we strive to continually improve our products, Scag reserves the right to make changes at any time without notice or obligation.

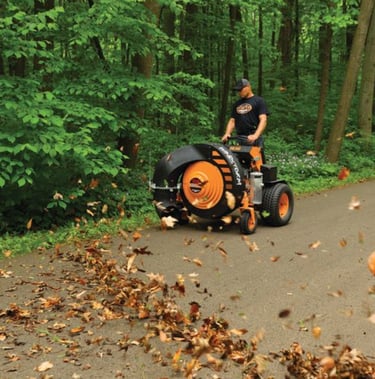

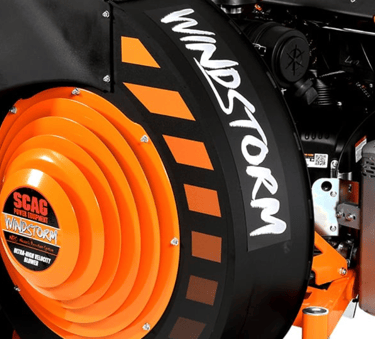

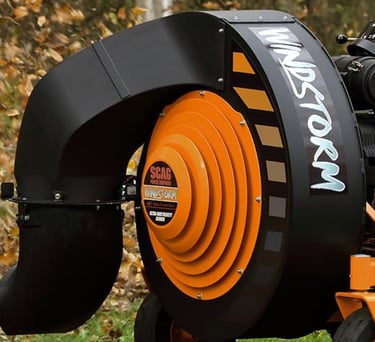

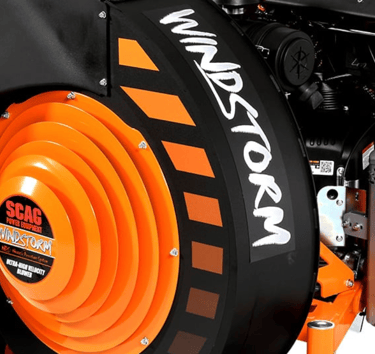

Massive Air Output

6,000 / 7,500 CFM

Massive air output of up to 6,000 effective CFM (Cubic Feet per Minute) (7,500 theoretical peak CFM) provides incredible ground-clearing force on a variety of surfaces and applications.

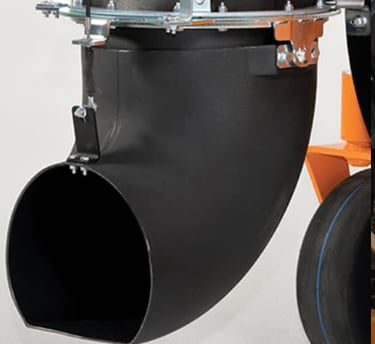

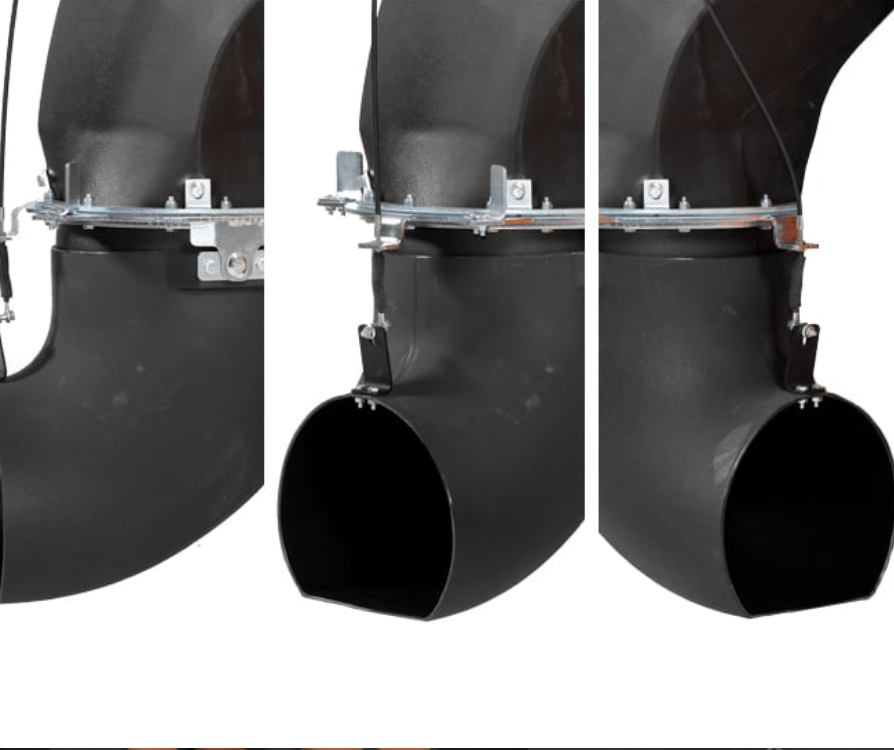

Convenient Manual Lever

VERTICAL-TILT CONTROL

Adjust the tilt of the discharge nozzle up to 16 degrees: lower to help loosen and blast stubborn debris, or higher to prevent blowback.

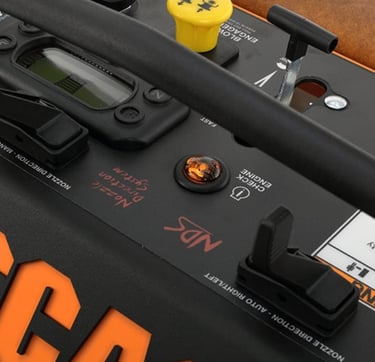

Fingertip Switches

DUAL HORIZONTAL-ROTATION CONTROLS

Adjust the nozzle’s rotation up to 180 degrees using an Auto Left/Right Switch and a Fine-Tune Switch.

Direct airflow where you need it!

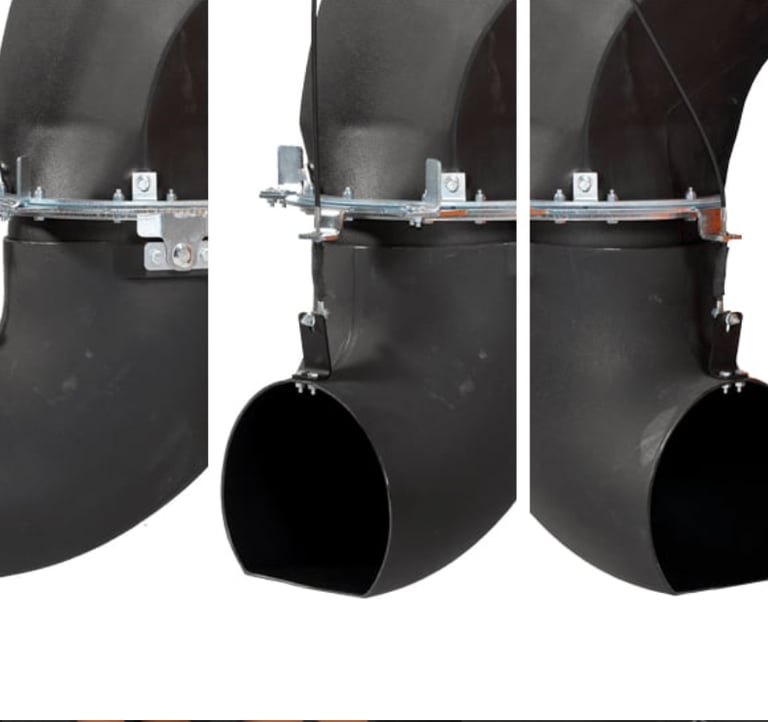

180° MULTI-DIRECTIONAL AIR-OUTPUT CONTROL AT YOUR FINGERTIPS

Scag’s exclusive NDS (Nozzle Direction System) provides unprecedented control of the air-discharge vertical tilt and horizontal rotation.

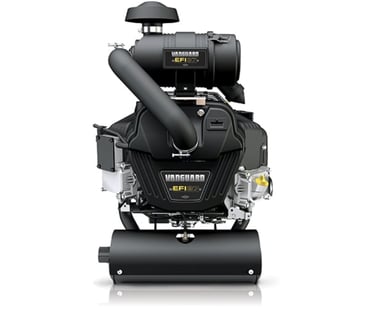

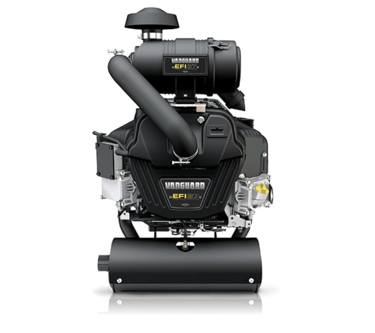

Powerful and Efficient Engine

HUGE POWER – 37 HP

Powered by a 37 hp Vanguard® BIG BLOCK™ EFI air-cooled engine for huge power, along with exceptional efficiency and dependable performance.

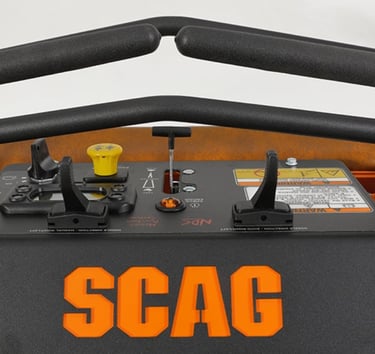

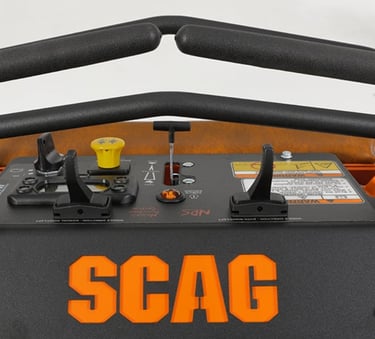

Controls and Instrument Panel

YOU'RE IN COMMAND

Proven, ergonomic drive-control lever’s design provides incredible ease-of-use. Instrument panel features NDS, ignition switch, PTO switch, throttle control, choke control and Scag’s exclusive Tiger Eye™ Advanced Monitoring System.

WINDSTORM DETAILS

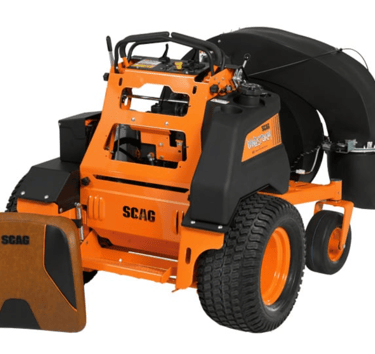

Operator Station

EXTRA-LARGE COMFORT CUSHION AND SUSPENSION PLATFORM

With an extra-thick cushion for operator comfort, the coil-suspension operator platform delivers an unmatched, ultra-comfortable ride. Tie-down points are built in to quickly secure to a trailer. Removable cushion and lower panel allow for quick and easy service access. Convenient engine and hydraulic oil drains are located underneath.
