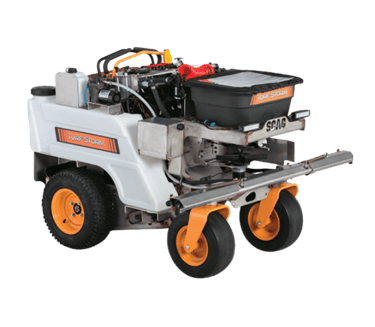

SCAG TURF STORM

TURF STORM / XL

THE REAL DEAL FOR SERIOUS CHEMICAL APPLICATIONS

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity, and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

STARTING AT $18,499

SCAG TURF STORM / TURF STORM XL

SPREADER / SPRAYERS

REQUEST A QUOTE

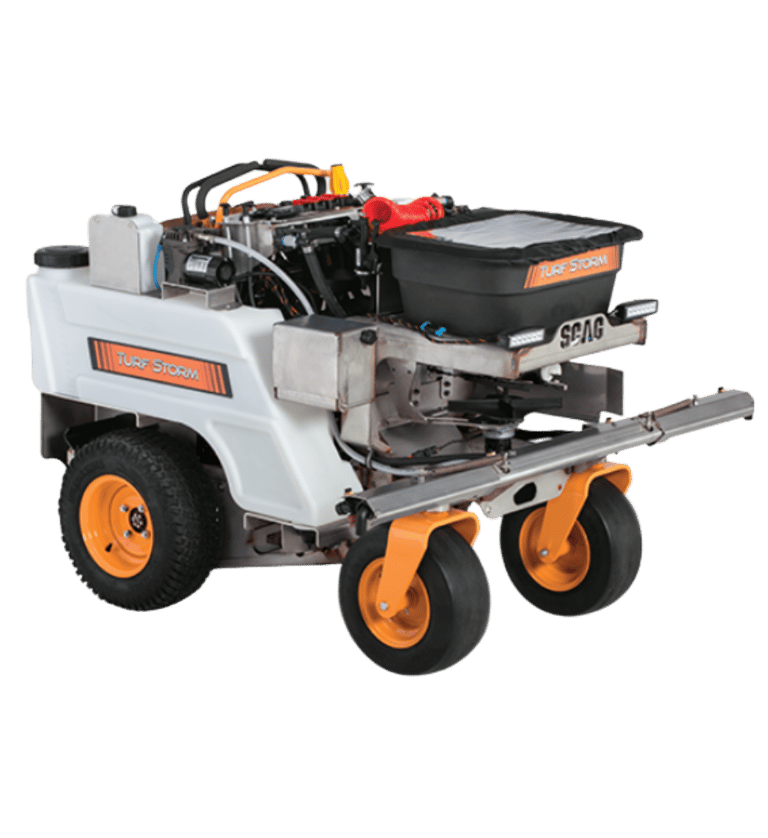

TURF STORM / TURF STORM XL

Looking to expand your lawn care offers? The Turf Storm XL and Turf Storm are ready to help you handle any job. With a 220-lb spreader capacity, 60-gallon sprayer capacity and an 8-ft spray boom, the Turf Storm XL can handle even the largest jobs. Conversely, the Turf Storm, with its 120-lb spreader capacity and 30-gallon sprayer capacity, is ideal for working on smaller residential properties. And, its 35.5-inch width (65-inch boom folded in) lets it fit through any standard gate. A 75-foot hose reel (Turf Storm XL) or 15-foot hose reel (Turf Storm) allows you to reach tough spaces.

OVERVIEW

TURF STORM MODELS

MODEL: STS60XL-23BV | TURF STORM XL |

TOTAL FUEL CAPACITY: 5 GALLONS

FRONT WHEELS: 16″ x 6.5″-8″, pneumatic

REAR WHEELS: 20″ x 12″-10″, 4-plY

CURRENTLY AVAILABLE ACCESSORIES: Foamer Kit, LED Light Kit, and 7 GPM pump

ENGINE: Briggs Vanguard™

HORSE POWER: 23

CHARGING SYSTEM: 12 Volt, 50 Amp

DRIVE SYSTEM: Dual Pump and Motor

MOTORS: Parker TG Series: 14.5ci

GROUND SPEED: Up to 8.5 MPH forward; Up to 5 MPH reverse

PARKING BREAK: HAND LEVER

MODEL: STS30-23BV | TURF STORM |

TOTAL FUEL CAPACITY: 4.5 GALLONS

FRONT WHEELS: 16″ x 6.5″-8″, pneumatic

REAR WHEELS: 20″ x 7″-10″, 4-plY

CURRENTLY AVAILABLE ACCESSORIES: Foamer Kit, LED Light Kit, and 7 GPM pump

ENGINE: Briggs Vanguard™

HORSE POWER: 23

CHARGING SYSTEM: 12 Volt, 50 Amp

DRIVE SYSTEM: Dual Pump and Motor

MOTORS: Parker TG Series: 14.5ci

GROUND SPEED: Up to 8.5 MPH forward; Up to 5 MPH reverse

PARKING BREAK: HAND LEVER

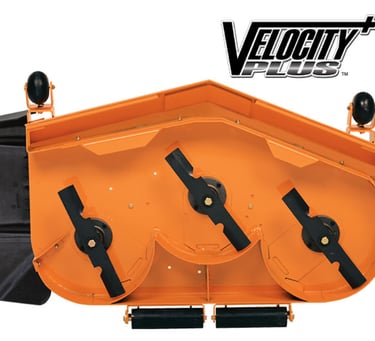

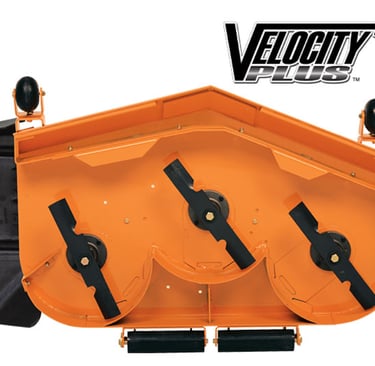

THE ENVY OF THE NEIGHBORHOOD

52", 61" OR 72" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an excellent quality cut and a wide, even discharge. This deck is equipped with Scag’s ultra-tough cast-iron spindles featuring tapered roller bearings and a top-mounted grease fitting with a relief valve to prevent over-greasing.

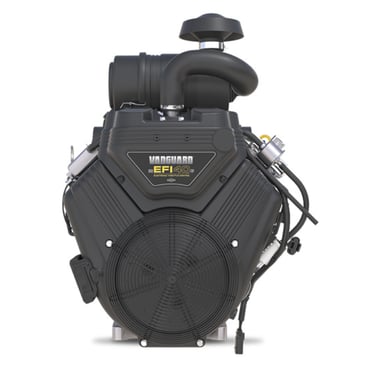

POWERFUL & EFFICIENT ENGINE OPTIONS

HUGE POWER, UP TO 32 HP

You can choose from a Kawasaki®, Briggs Vanguard™, or Kohler® air-cooled engine, and electronic fuel injection (EFI) options are available.

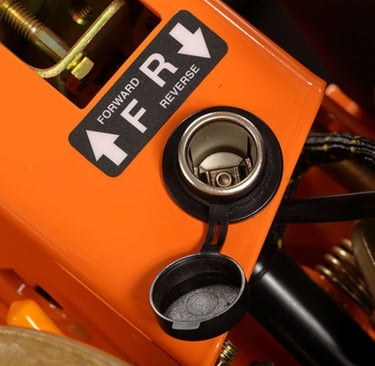

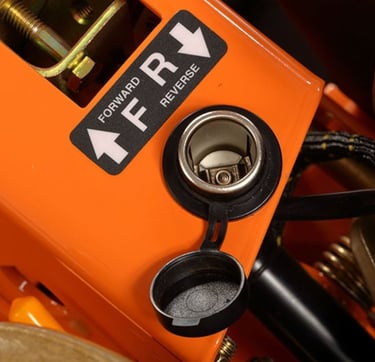

12-VOLT OUTLET

KEEP YOUR DEVICE CHARGED & READY

A 12-volt outlet for added convenience allows operators to plug in small accessories or keep their phones at full charge.

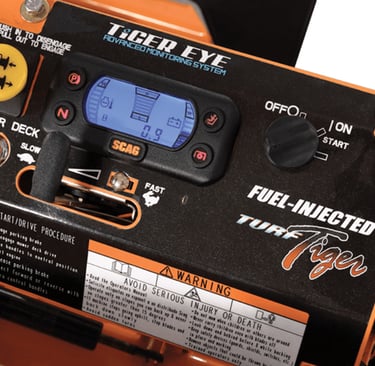

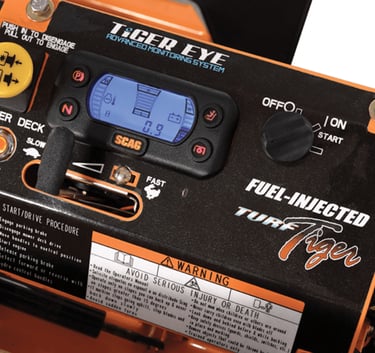

TIGER EYE MONITORING SYSTEM

KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS

Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat.

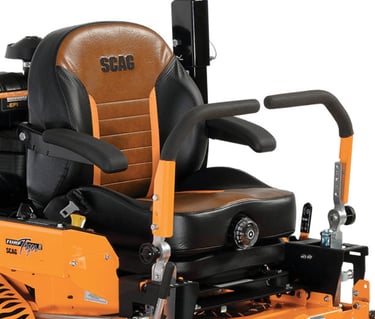

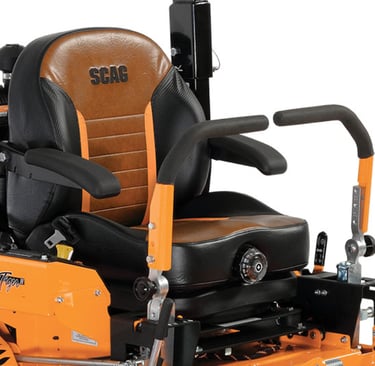

SUSPENSION SEAT

RIDE IN COMFORT

Torsion-spring suspension seat adjusts to each operator’s weight to provide superior comfort. The seat features full padding, forward/rearward adjustment, a high back, adjustable armrests, and an adjustable back angle. The 4-point, rubber iso-mounting provides even more shock absorption, maximizing your comfort, hour after hour.

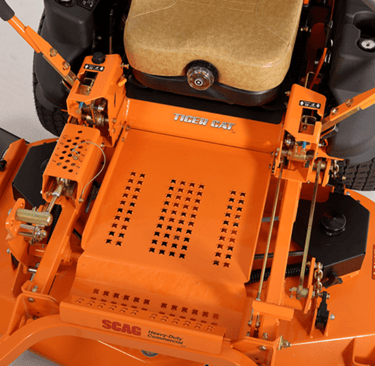

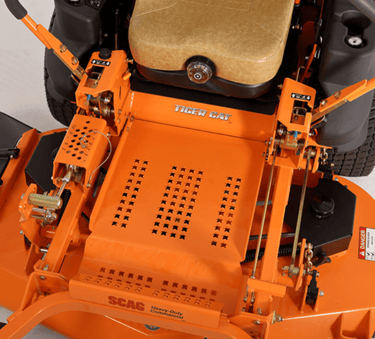

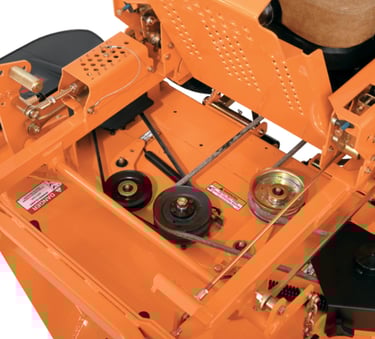

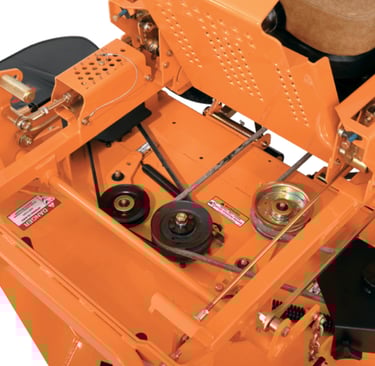

EASE OF MAINTENANCE

MORE UPTIME

Flip-up access panels, an unrestricted engine compartment, easy-to-reach grease zerks, and many more features make servicing the Tiger Cat® simple, so you can be in the shop less and on the job more.

TIGER CAT II DETAILS

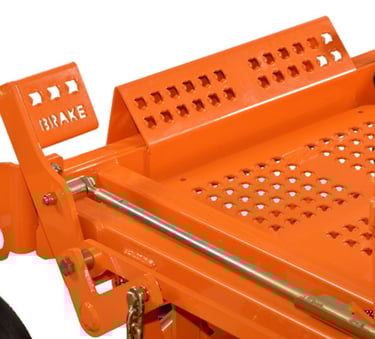

HIGH-STRENGTH STEEL FRAME

SOLID DESIGN FOR DEPENDABLE SERVICE

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

OGURA PTO CLUTCH BRAKE

ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT3.5 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 250 ft. lb. of holding strength, and an adjustable air gap for long life.
