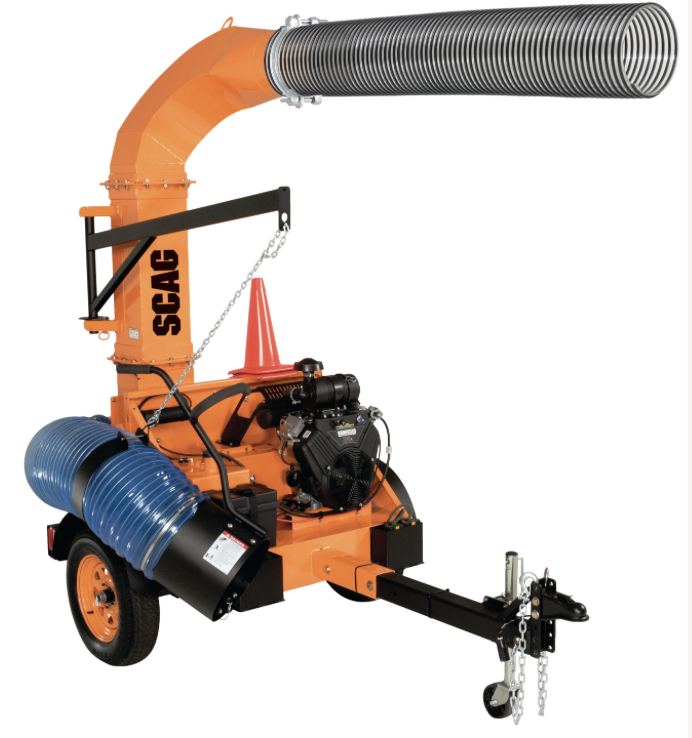

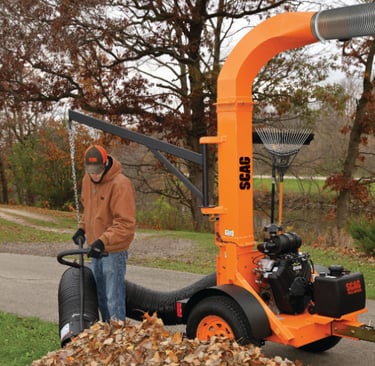

When the best demand the best, it’s time for the toughest and most powerful: the Scag® Industrial Tow-Behind Truck Loader. No matter the job—from landscaping and municipal operations to golf courses—this machine features the commercial-grade size and performance needed to get the job done. Leave the rest behind and work with the best.

TOW-BEHIND

STARTING AT $10,599

TRUCK LOADERS

REQUEST A QUOTE

SCAG TOW-BEHIND

TOW-BEHIND

When the best demand the best, it’s time for the toughest and most powerful: the Scag® Industrial Tow-Behind Truck Loader. No matter the job—from landscaping and municipal operations to golf courses—this machine features the commercial-grade size and performance needed to get the job done. Leave the rest behind and work with the best.

OVERVIEW

TOW-BEHIND MODELS

MODEL: TL20W-26CH-EFI

ENGINE: Kohler® Command PRO® EFI, V-Twin, electric start

HP: 26.5

FUEL CAPACITY / TANK: 5.5 gallons – plastic tank with built-in fuel gauge

CFM OUTPUT: 4,680

FRAME CONSTRUCTION: All-steel, welded

IMPELLER CONSTRUCTION: 4-blade, 3/8″-thick blades, all-steel, welded

IMPELLER MOUNTING: Tapered locking hub

IMPELLER DIAMETER: 20″ / 6.5″

BLOWER HOUSING CONSTRUCTION: Removable back panel for easy impeller and wear plate access

BLOWER HOUSING WIDTH: 7.5″

BLOWER HOUSING WEAR PLATES: Standard: 1/4″-steel, replaceable

INTAKE HOSE SPECIFICATION: 120″ length, 12″-diameter intake hose, 0.045 polyurethane rubber, wire helix with wear strip

UNIT MOUNTING: Hitch: Class III minimum

DISCHARGE TUBE: Clear thermoplastic, 8″ diameter, 60″ length

THROTTLE-CONTROL: Commercial-grade, all-steel mechanicals

HIGHWAY READY: Yes – optional roadside package

AXLE: Heavy-duty Dexter Torflex® axle (2,000 lb)

TIRES: 205 / 75 D15 highway tires with steel wheels

TRAILER WIDTH: 53.5″

ACCESSORIES: Light Kit, Roadside Kit

HEIGHT: 110″

WEIGHT: 990 lb

WARRANTY: 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental

MSRP: $11,049

MODEL: TL20W-33BV

ENGINE: Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin

HP: 33

FUEL CAPACITY / TANK: 5.5 gallons – plastic tank with built-in fuel gauge

CFM OUTPUT: 4,680

FRAME CONSTRUCTION: All-steel, welded

IMPELLER CONSTRUCTION: 4-blade, 3/8″-thick blades, all-steel, welded

IMPELLER MOUNTING: Tapered locking hub

IMPELLER DIAMETER: 20″ / 6.5″

BLOWER HOUSING CONSTRUCTION: Removable back panel for easy impeller and wear plate access

BLOWER HOUSING WIDTH: 7.5″

BLOWER HOUSING WEAR PLATES: Standard: 1/4″-steel, replaceable

INTAKE HOSE SPECIFICATION: 120″ length, 12″-diameter intake hose, 0.045 polyurethane rubber, wire helix with wear strip

UNIT MOUNTING: Hitch: Class III minimum

DISCHARGE TUBE: Clear thermoplastic, 8″ diameter, 60″ length

THROTTLE-CONTROL: Commercial-grade, all-steel mechanicals

HIGHWAY READY: Yes – optional roadside package

AXLE: Heavy-duty Dexter Torflex® axle (2,000 lb)

TIRES: 205 / 75 D15 highway tires with steel wheels

TRAILER WIDTH: 53.5″

ACCESSORIES: Light Kit, Roadside Kit

HEIGHT: 110″

WEIGHT: 1060 lb

WARRANTY: 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental

MSRP: $10,599

4-BLADE IMPELLER

FABRICATED & BALANCED

Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life, and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.

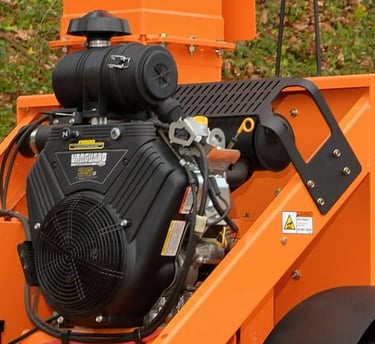

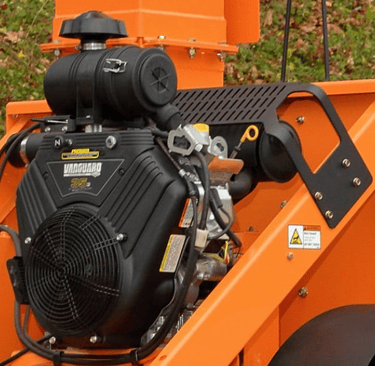

ULTRA-POWERFUL ENGINE OPTIONS

HUGE POWER, UP TO 29 HP

Choose from a 26.5 hp Kohler® Command PRO®EFI or a 29 hp Vanguard® BIG BLOCK™ gasoline engine.

LARGE FUEL TANK

HOURS AND HOURS OF RUN TIME

A high-capacity, 5.5-gallon steel fuel tank with a large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

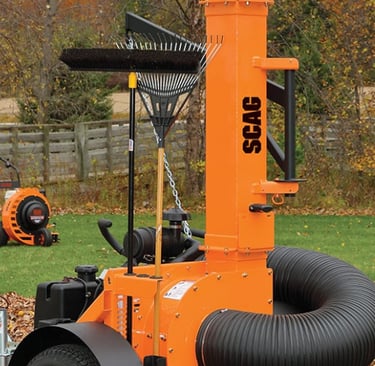

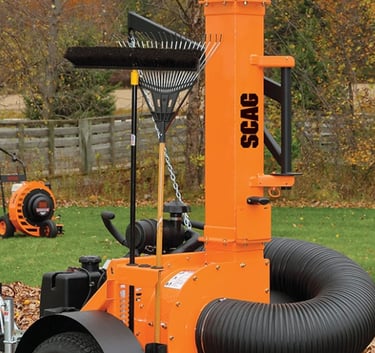

BUILT-IN TOOL HOLDER

KEEP YOUR RAKES, BROOMS, AND SHOVELS WITHIN EASY REACH

Built-in, 3-hole tool holder with rubber rings protects handles from damage.

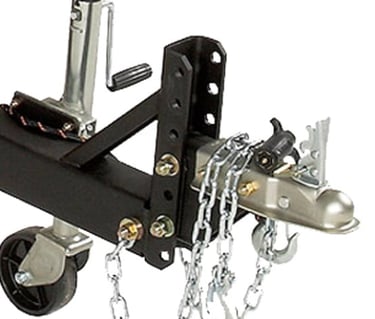

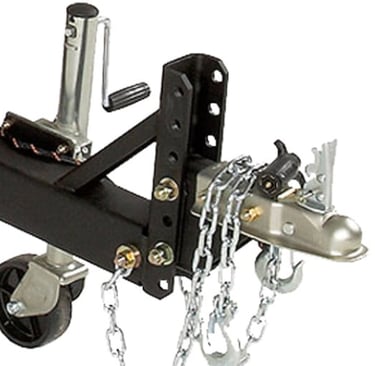

ADJUSTABLE TONGUE & HITCH

FIT TO YOUR TRUCK – LONG OR SHORT, HIGH OR LOW

Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit to your truck. A 2″ or a 2 5/16" ball coupler comes standard on gas-powered units but will accept a pintle hitch. The diesel-powered unit comes with a standard pintle hitch but will take a 2″ or a 2 5/16" ball coupler.

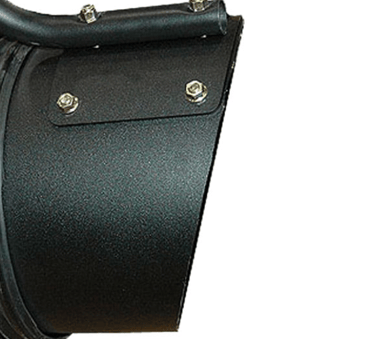

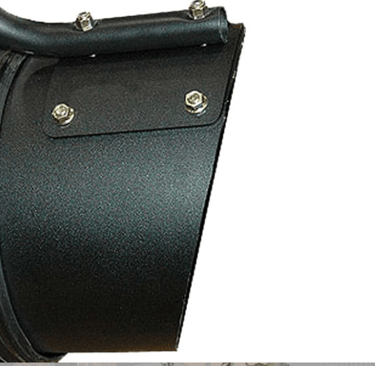

12" STEEL INTAKE NOZZLE

TAKE IT ALL IN

HUGE, replaceable intake nozzle makes debris pickup easy.

TURF TIGER II DETAILS

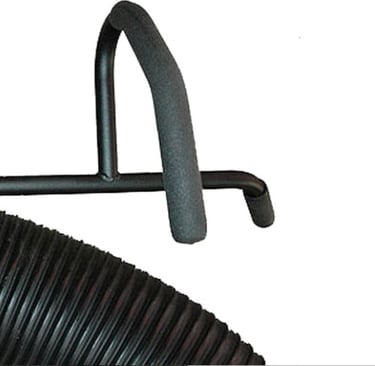

AMBIDEXTROUS NOZZLE HANDLE

EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS

The padded, large-diameter handle is designed for increased leverage and easy maneuverability.

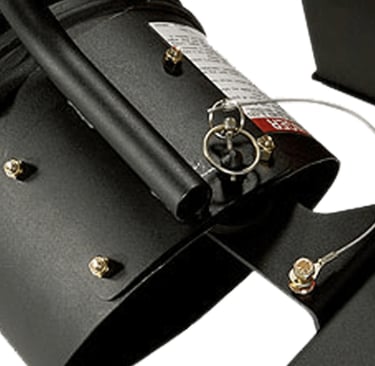

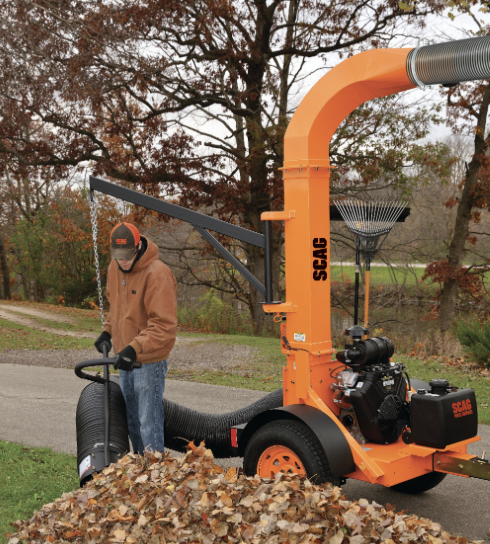

LOCKING BOOM ARM & INTAKE HANDLE

SAFE AND CONVENIENT TRANSPORT

The transport lock safely secures the boom arm and hose when not in use; the nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.
