SCAG RC-EXTREME SLOPE MOWER

SCAG RC EXTREME SLOPE MOWER

FOR PROS & PROS AT HOME

For all business—even at home—the Freedom Z® is perfect for landscapers needing a machine that can go the distance or for the pro-at-home who owns a large-acreage lot. Commercial-quality through and through, this machine is comfortable anywhere the job needs to be done.

STARTING AT $59,750

SCAG SCAG RC EXTREME SLOPE MOWER

REMOTE MOWERS

REQUEST A QUOTE

RC EXTREME SLOPE MOWER

America's mower - the Scag Patriot. Value priced for the lawn care professional. The chassis, drive wheels, caster wheels, footplate, rear bumper, and anti-scalp brakes have been blacked out. The ROPS pop with Cat's Eye Gold. Ideal for homeowners, this machine is affordable, reliable, and efficient, and delivers quality results season after season.

OVERVIEW

REMOTE EXTREME SLOPE MOWER MODEL

MODEL: SRC-52D-37BV-EFI | DECK WIDTH: 70″ | ENGINE: Vanguard BIG BLOCK™ V-Twin EFI engine; ETC W/ Oil Guard | HORSEPOWER 37 | MSRP: $59,750

HYBRID POWER

GAS / ELECTRIC

9 kWh total battery power. A 7kW alternator is powered by a 37 hp Vanguard Big Block EFI/ ETC engine, which only runs when needed to recharge the batteries. The Oil Guard system enhances engine protection on slopes and maximizes engine oil change intervals to save you time and money. The all-electric drive system and deck motors deliver dependable power via 9 kWh battery power, not the engine. The electric drive system provides superior remote-controlled drivability compared to hydraulic. Ultimately, this true full hybrid system provides all-day power with superior drivability performance, increased fuel economy with lower emissions, and reduced overall running costs.

POWERFUL & EFFICIENT ENGINE OPTIONS

HUGE POWER, UP TO 40 HP

Choose from Briggs & Stratton Vanguard®, Kawasaki®, or Kohler engines; electronic fuel injection (EFI) is standard on all V-Ride XL models.

TIGER EYE ADVANCED MONITORING SYSTEM

KEEP A REAL-TIME "EYE"

The Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat. (Specific functions vary by mower model and engine.)

EASE OF MAINTENANCE

MORE UPTIME

Comfort cushion and lower panel are removable to allow quick and easy service access to the hydraulic system. This gives operators unrestricted engine compartment access for easy-to-reach grease Zerks and many more features, making servicing the V-Ride XL simple. Spend less time in the shop and more on the job.

INDUSTRIAL GRADE HYDROAULIC SYSTEM

SPEEDS UP TO 11.6 MPH

Heavy-Duty Hydro-Gear pumps (16 cc) and high-torque Hydro-Gear wheel motors (18 ci) deliver dependable power, with speeds up to 11.6 mph. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.

HIGH STRENGTH STEEL FRAME

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

V-RIDE XL DETAILS

CUTTER DECK LIFT SYSTEM

CONVENIENT, SPRING-ASSISTED LEVER

Change cutting heights from 2-6″ in ¼” increments. The deck can be lifted from the operating position with the pull of a spring-assisted lever.

HYBRID POWER

GAS / ELECTRIC

9kWh total battery power. A 7kW alternator is powered by a 37hp Vanguard Big Block EFI/ ETC engine, which only runs when needed to recharge the batteries. The Oil Guard system enhances engine protection on slopes and maximizes engine oil change intervals to save you time and money. The all-electric drive system and deck motors deliver dependable power via 9kWH battery power – not the engine. Electric drive system provides superior remote-controlled drivability compared to hydraulic. Ultimately this true full hybrid system provides all-day power with superior drivability performance, increased fuel economy with lower emissions reducing overall running costs.

REMOTE EXTREME SLOPE MOWER DETAILS

QUICK TRACK TENSION

GREASE TRACK TENSIONER

Forget about the old-fashioned threaded rod tensioning system. Galling of threads, stripping of bolt heads due to extreme force, and tedious locking plates are things of the past. Turn what was a 5 minute job into 5 seconds! A grease tensioning system is the way to go with way fewer moving parts, and by far outperforms threaded rod tensioning systems under intense pressure. All it takes is 3-5 pumps of grease and you are ready to tackle the toughest terrains!

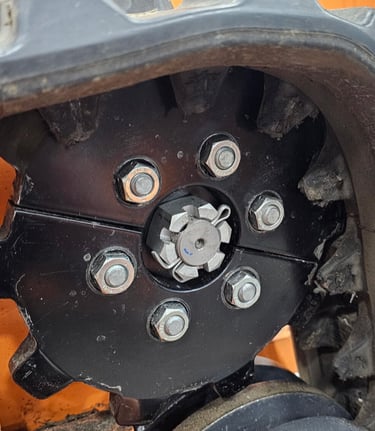

EASE OF TRACK INSTALLATION

TRACK SPLIT COG

Unique split cog design allows for easy track installation. No more hassle trying to line up all six bolt holes of overdrive lugs with a single cog design. Simply place one of the split cogs over three drive lugs, rotate the drive motor 180 degrees, and place the final split cog over the remaining three drive lugs.

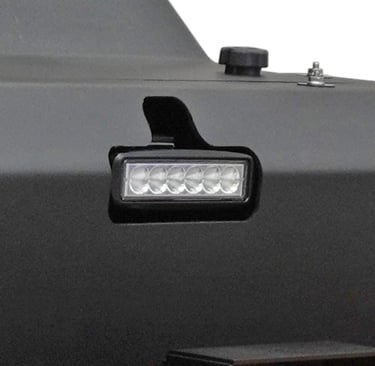

FRONT & REAR LED WORK LIGHTS

LIGHT UP THE NIGHT!

Standard front and rear LED flood lights allow for all hours of the day operation. Each LED light bar is equipped with 6 powerful LEDs emitting 1400 lumens of light supplying a bright, sharp, and clear path forward and reverse.

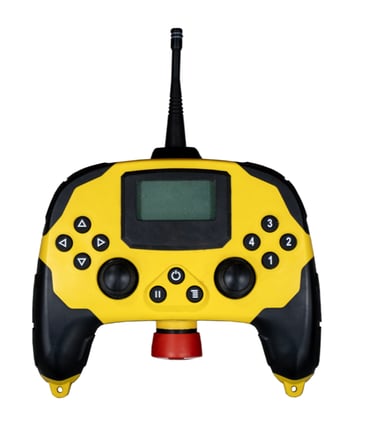

EASY TO USE REMOTE

SAFE OPERATION

In the United States, more than 70,000 people are injured and 70 people on average are killed each year due to lawn mower accidents with a significant portion of these deaths occurring on hills due to increased rollovers on uneven terrain. Let’s erase these statistics with the safety of remote-controlled operation keeping the operator far away from danger. Our easy-to-use remote control has remote connectivity of over 1,000 feet of line of sight with the machine. The remote features an internal rechargeable battery to provide more than 10 hours of operation. Also includes a display for viewing machine status i.e. battery state of charge, deck height, engine state, blade status, generic faults, etc. In the event an operator drops the controller during operation of machine the free fall enable setting will e-stop the machine safely.

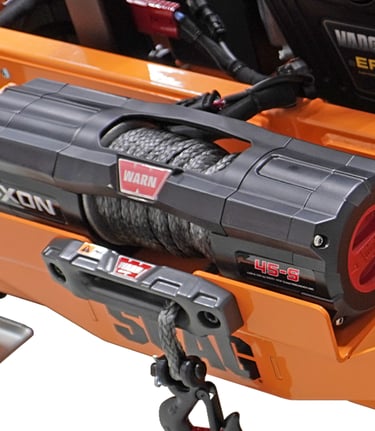

STRENGTH YOU CAN TRUST

POWERFUL WINCH

Got yourself stuck far off the beaten path? No need to call for help. The machine comes standard with a powerful winch, capable of pulling up to 4,500 lbs. with 50’ of rope all with the use of your cell phone. Simply download the Warn Hub app to pair to winch and you have complete control. Find the nearest anchoring object to attach to and pull yourself out getting you back up and running quickly
