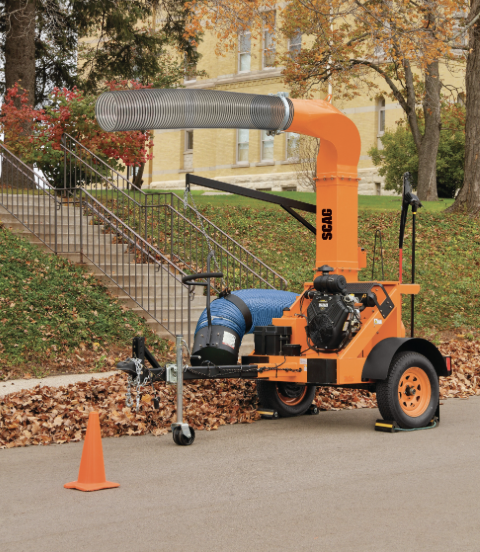

SCAG INDUSTRIAL TOW-BEHIND

LEAVE THE REST. GET THE BEST.

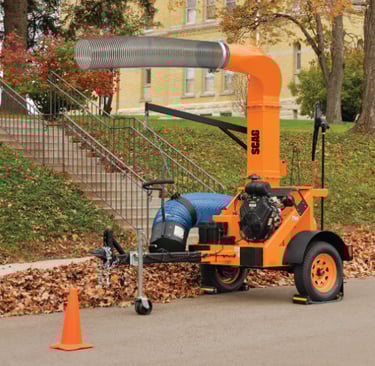

When the best demand the best, it’s time for the toughest and most powerful: the Scag® Industrial Tow-Behind Truck Loader. No matter the job—from landscaping and municipal operations to golf courses—this machine features the commercial-grade size and performance needed to get the job done. Leave the rest behind and work with the best.

INDUSTRIAL TOW BEHIND

STARTING AT $16,999

TRUCK LOADERS

REQUEST A QUOTE

SCAG INDUSTRIAL TOW-BEHIND

INDUSTRIAL TOW-BEHIND

OVERVIEW

INDUSTRIAL TOW-BEHIND MODELS

MODEL: TLB25-35BV

ENGINE: Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin, electric start

HP: 35

FUEL CAPACITY / TANK: 8.5 gallons – plastic tank with built-in fuel gauge

CFM OUTPUT: 6,781

FRAME CONSTRUCTION: All-steel, welded

IMPELLER CONSTRUCTION: 4-blade, 1/2″-thick blades, all-steel, welded

IMPELLER MOUNTING: Straight bore

IMPELLER DIAMETER: 25″ / 9″

BLOWER HOUSING CONSTRUCTION: Removable back panel for easy impeller and wear plate access

BLOWER HOUSING WIDTH: 10.5″

BLOWER HOUSING WEAR PLATES: Standard: 1/4″-steel, replaceable

INTAKE HOSE SPECIFICATION: 84″ length, 16″-diameter intake hose, 0.045 polyurethane rubber, wire helix with wear strip

UNIT MOUNTING: Hitch: at least 10,000 lb rating

DISCHARGE TUBE: Clear thermoplastic, 12″ diameter, 84″ length

THROTTLE-CONTROL: Commercial-grade, all-steel mechanicals

HIGHWAY READY: Yes – standard roadside package, including wheel chocks and cones

AXLE: Heavy-duty Dexter Torflex® axle (3,500 lb)

TIRES: 205 / 75 D15 highway tires with steel wheels

TRAILER WIDTH: 66.75″

ACCESSORIES: Light Kit, Brake Kit

HEIGHT: 121.25″

WEIGHT: 1,700 lb

WARRANTY: 2-Year Commercial; 90-Day Rental

MSRP: $16,699

MODEL: TLB25-37CH

ENGINE: Kohler® Command PRO®, V-Twin, electric start

HP: 37

FUEL CAPACITY / TANK: 8.5 gallons – plastic tank with built-in fuel gauge

CFM OUTPUT: 6,909

FRAME CONSTRUCTION: All-steel, welded

IMPELLER CONSTRUCTION: 4-blade, 1/2″-thick blades, all-steel, welded

IMPELLER MOUNTING: Straight bore

IMPELLER DIAMETER: 25″ / 9″

BLOWER HOUSING CONSTRUCTION: Removable back panel for easy impeller and wear plate access

BLOWER HOUSING WIDTH: 10.5″

BLOWER HOUSING WEAR PLATES: Standard: 1/4″-steel, replaceable

INTAKE HOSE SPECIFICATION: 84″ length, 16″-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wear strip

UNIT MOUNTING: Hitch: at least 10,000 lb rating

DISCHARGE TUBE: Clear thermoplastic, 12″ diameter, 84″ length

THROTTLE-CONTROL: Commercial-grade, all-steel mechanicals

HIGHWAY READY: Yes – standard roadside package, including wheel chocks and cones

AXLE: Heavy-duty Dexter Torflex® axle (3,500 lb)

TIRES: 205 / 75 D15 highway tires with steel wheels

TRAILER WIDTH: 66.75″

ACCESSORIES: Light Kit, Brake Kit

HEIGHT: 121.25″

WEIGHT: 1,700 lb

WARRANTY: 2-Year Commercial; 90-Day Rental

MSRP: $17,199

MODEL: TLB25-49KBD

ENGINE: Tier 4 Compliant Kubota®, 4-cylinder, liquid-cooled, electric start

HP: 49

FUEL CAPACITY / TANK: 8.5 gallons – plastic tank with built-in fuel gauge

CFM OUTPUT: 7,328

FRAME CONSTRUCTION: All-steel, welded

IMPELLER CONSTRUCTION: 4-blade, 1/2″-thick blades, all-steel, welded

IMPELLER MOUNTING: Straight bore

IMPELLER DIAMETER: 25″ / 9″

BLOWER HOUSING CONSTRUCTION: Removable back panel for easy impeller and wear plate access

BLOWER HOUSING WIDTH: 10.5″

BLOWER HOUSING WEAR PLATES: Standard: 1/4″-steel, replaceable

INTAKE HOSE SPECIFICATION: 84″ length, 16″-diameter intake hose, 0.045 polyurethane rubber, wire helix with wear strip

UNIT MOUNTING: Hitch: at least 10,000 lb rating

DISCHARGE TUBE: Clear thermoplastic, 12″ diameter, 84″ length

THROTTLE-CONTROL: Commercial-grade, all-steel mechanicals

HIGHWAY READY: Yes – standard roadside package, including wheel chocks and cones

AXLE: Heavy-duty Dexter Torflex® axle (3,500 lb)

TIRES: 205 / 75 D15 highway tires with steel wheels

TRAILER WIDTH: 66.75″

ACCESSORIES: Light Kit, Brake Kit

HEIGHT: 121.25″

WEIGHT: 2,300 lb

WARRANTY: 2-Year Commercial; 90-Day Rental

MSRP: $39,999

4-BLADE IMPELLER

FABRICATED & BALANCED

Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life, and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.

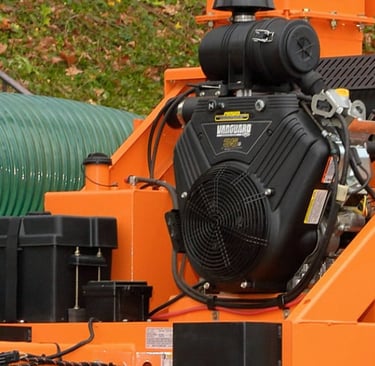

ULTRA-POWERFUL ENGINE OPTIONS

HUGE POWER, UP TO 49 HP

Choose from a 35 hp Vanguard® BIG BLOCK™ or a 37 hp Kohler® Command PRO® gasoline engine, or a 49 hp Kubota® diesel engine.

LARGE FUEL TANK

HOURS AND HOURS OF RUN TIME

High-capacity, 8.5-gallon, steel fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

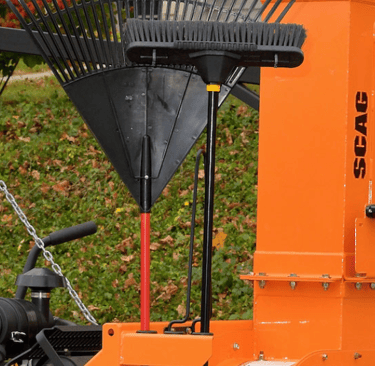

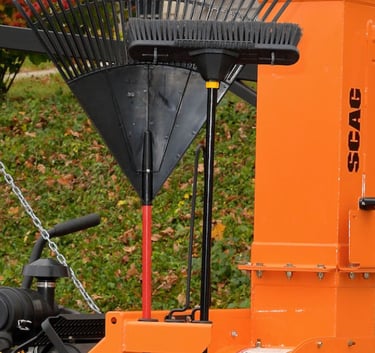

BUILT-IN TOOL HOLDER

KEEP YOUR RAKES, BROOMS, AND SHOVELS WITHIN EASY REACH

Built-in, 3-hole tool holder with rubber rings protects handles from damage.

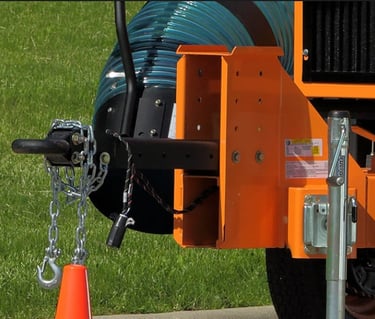

ADJUSTABLE TONGUE & HITCH

FIT TO YOUR TRUCK – LONG OR SHORT, HIGH OR LOW

Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit to your truck. A 2 5/16″ ball coupler comes standard on gas-powered units but will accept a pintle hitch. The diesel-powered unit comes with a standard pintle hitch but will take a 2 5/16″ ball coupler.

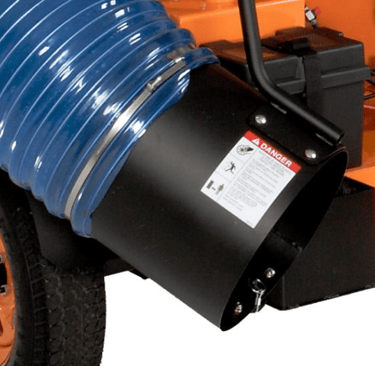

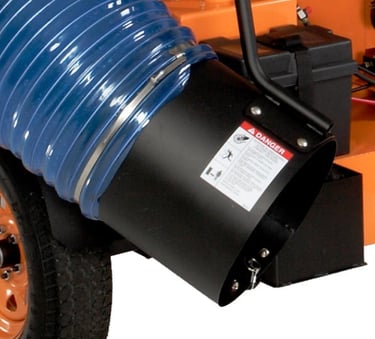

16" STEEL INTAKE NOZZLE

TAKE IT ALL IN

HUGE, replaceable intake nozzle makes debris pickup easy.

INDUSTRIAL TOW-BEHIND DETAILS

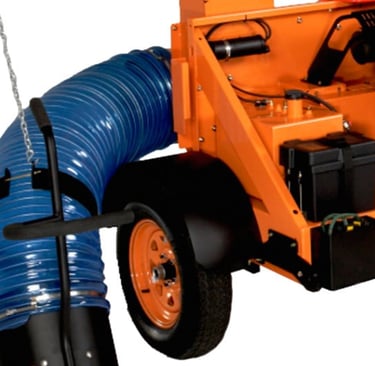

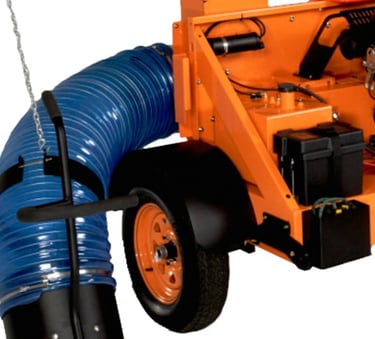

AMBIDEXTROUS NOZZLE HANDLE

EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS

The padded, large-diameter handle is designed for increased leverage and easy maneuverability.

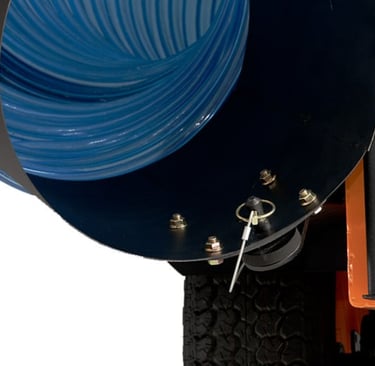

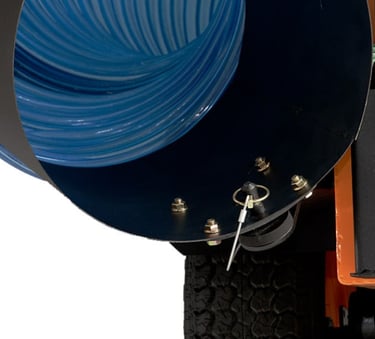

LOCKING BOOM ARM & INTAKE HANDLE

SAFE AND CONVENIENT TRANSPORT

The transport lock safely secures the boom arm and hose when not in use; the nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.
