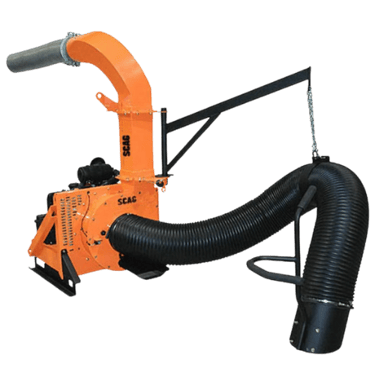

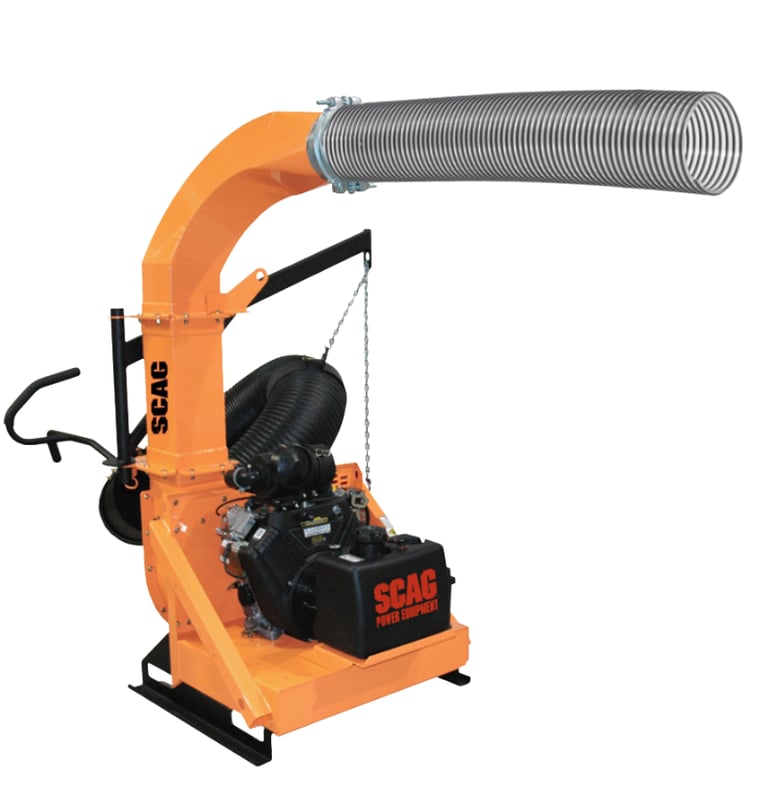

SCAG INDUSTRIAL SKID-MOUNT

BUILT TO WORK

Powered by a 29 hp Vanguard® Big Block gasoline, V-twin engine, nothing escapes the Industrial Skid-Mount and its unmatched strength. With safe and convenient transportation features and a high-capacity fuel tank, this machine is built to optimize the productivity of your operation by sticking around for the long haul.

INDUSTRIAL SKID-MOUNT

STARTING AT $8,199

SCAG INDUSTRIAL SKID-MOUNT

REQUEST A QUOTE

INDUSTRIAL SKID-MOUNT

When the best demand the best, it’s time for the toughest and most powerful: the Scag® Industrial Tow-Behind Truck Loader. No matter the job—from landscaping and municipal operations to golf courses—this machine features the commercial-grade size and performance needed to get the job done. Leave the rest behind and work with the best.

OVERVIEW

INDUSTRIAL SKID-MOUNT MODELS

MODEL: TL20W-29BV

ENGINE: Briggs & Stratton® Vanguard® BIG BLOCK™, V-Twin, electric start

HP: 29

FUEL CAPACITY / TANK: 5.5 gallons – plastic tank with built-in fuel gauge

CFM OUTPUT: 4,680

FRAME CONSTRUCTION: All-steel, welded

IMPELLER CONSTRUCTION: 4-blade, 3/8″-thick blades, all-steel, welded

IMPELLER MOUNTING: Tapered locking hub

IMPELLER DIAMETER: 20″ / 6.5″

BLOWER HOUSING CONSTRUCTION: Removable back panel for easy impeller and wear plate access

BLOWER HOUSING WIDTH: 7.5″

BLOWER HOUSING WEAR PLATES: Standard: 1/4″-steel, replaceable

INTAKE HOSE SPECIFICATION: 120″ length, 12″-diameter intake hose, 0.045 polyurethane rubber, wire helix with wear strip

UNIT MOUNTING: 4″ steel skid risers

DISCHARGE TUBE: Clear thermoplastic, 8″ diameter, 60″ length

THROTTLE-CONTROL: Commercial-grade, all-steel mechanicals

HIGHWAY READY: N/A

AXLE: N/A

TIRES: N/A

TRAILER WIDTH: N/A

HEIGHT: 75″ (without skid mount attached)

WEIGHT: 675 lb

WARRANTY: 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental

MSRP: $8,199

MODEL: TLS20W-33BV

ENGINE: Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin

HP: 33

FUEL CAPACITY / TANK: 5.5 gallons – plastic tank with built-in fuel gauge

CFM OUTPUT: 4,680

FRAME CONSTRUCTION: All-steel, welded

IMPELLER CONSTRUCTION: 4-blade, 3/8″-thick blades, all-steel, welded

IMPELLER MOUNTING: Tapered locking hub

IMPELLER DIAMETER: 20″ / 6.5″

BLOWER HOUSING CONSTRUCTION: Removable back panel for easy impeller and wear plate access

BLOWER HOUSING WIDTH: 7.5″

BLOWER HOUSING WEAR PLATES: Standard: 1/4″-steel, replaceable

INTAKE HOSE SPECIFICATION: 120″ L X 12″-dia. intake hose, 0.045 polyurethane rubber, wire helix w/ wear strip

UNIT MOUNTING: 4" steel skid risers

DISCHARGE TUBE: Clear thermoplastic, 8″ diameter, 60″ length

THROTTLE-CONTROL: Commercial-grade, all-steel mechanicals

HIGHWAY READY: N/A

AXLE: N/A

TIRES: N/A

TRAILER WIDTH: N/A

HEIGHT: 75″ (without skid mount attached)

WEIGHT: 675 lb

WARRANTY: 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental

MSRP: $8,299

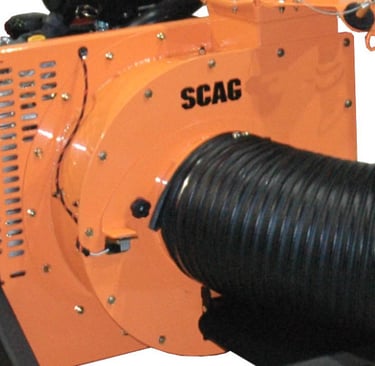

4-BLADE IMPELLER

FABRICATED & BALANCED

Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life, and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.

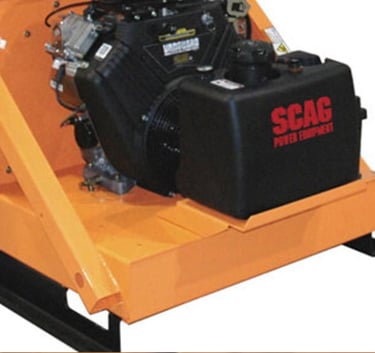

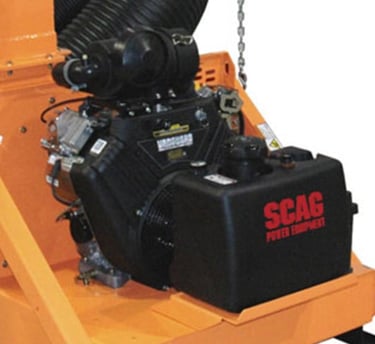

POWERFUL ENGINE

29 HP VANGUARD ENGINE

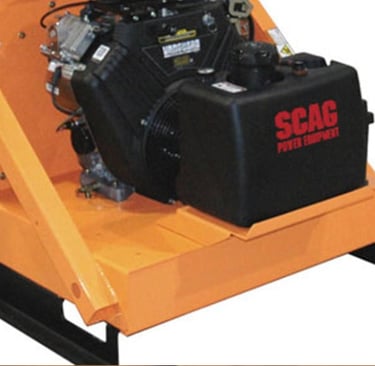

LARGE FUEL TANK

HOURS AND HOURS OF RUN TIME

A high-capacity, 5.5-gallon steel fuel tank with a large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

SKID-MOUNT

STANDARD 4" SKID RISERS

Four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed.

LOCKING BOOM INTAKE NOZZLE

SAFE & CONVENIENT TRANSPORT

The transport lock safely secures the boom arm and hose when not in use; the nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. The quick-detach hose also allows for quick and easy transport, storage, and cleaning.

12" STEEL INTAKE NOZZLE

TAKE IT ALL IN

HUGE, replaceable intake nozzle makes debris pickup easy.

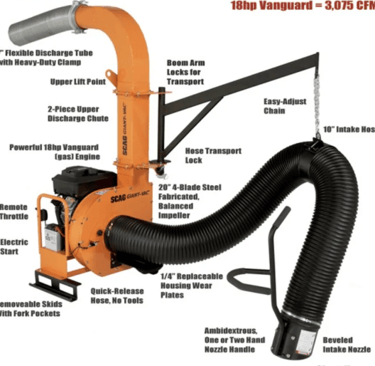

INDUSTRIAL SKID-MOUNT DETAILS

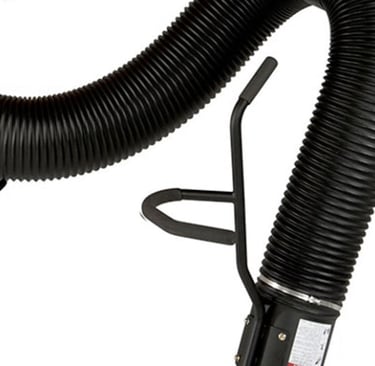

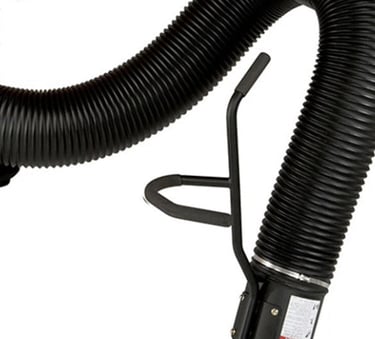

AMBIDEXTROUS NOZZLE HANDLE

EASY HANDLING FROM EITHER SIDE

The padded, large-diameter handle is designed for increased leverage and easy maneuverability.

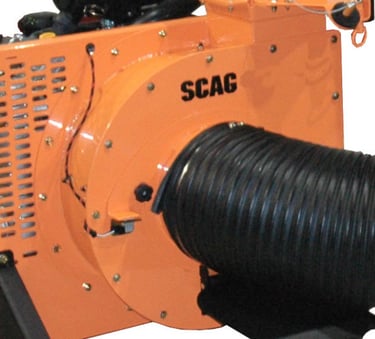

SMART CONVENIENT SERVICEABILITY

EASY ACCESS WEAR PLATE & IMPELLER

1/4″-thick, bolt-in, replaceable wear liner extends service life. The removable rear housing cover allows easy access to the impeller and wear plates.
